SPECIFICATION

Type: Mixers

Feature

1. 3 stage equalization regulate,by adjusting knob to adjust the reverb depth and delay effect.

2. 12-channel.

3. Bluetooth function to support wireless docking of most Bluetooth-enabled electronic devices.

4. USB slot，it can be connected to USB flash disk or MP3 and other portable audio equipment.

5. There are 6 modes of music: nature, P0P, rock, jazz, classical, country.

6. Support to conect with wired/wireless/capacitor microphone, applicable to the family KTV, campus speech, meeting etc.

7. Ultra low noise mix head amp design.

8. Analog effect processor.

Specification

1. Channel: 12 channels

2. Maximum input level of microphone: +24dBu

3. Maximum input level of line: +24dBu

4. Maximum input level: XLR+26dBu

5. Frequency response: 20Hz-30kHz±0.5dB

6. Max Input Power: 15W

7. THD+N: ＜0.01%

8. Crosstalk (1kHz): > 85dB

9. Noise (22Hz to 22KHz): equivalent input noise -122dbu, residual output noise < -90dbu

10. Mono/Stereo channel EQ:

High frequency, broom type, +/-15db, 12KHz

Low frequency, broom type, +/-15db, 80KHz

Mid-high frequency, peak type, +/-15db, 2.5KHz

11. Mono

XLR: 2PIN, 2Kohm, -60~+14dbu sensitivity

TRS: tip, 10Kohm, -40~+14dbu sensitivity

XLR: +48V

Material: Metal+plastic

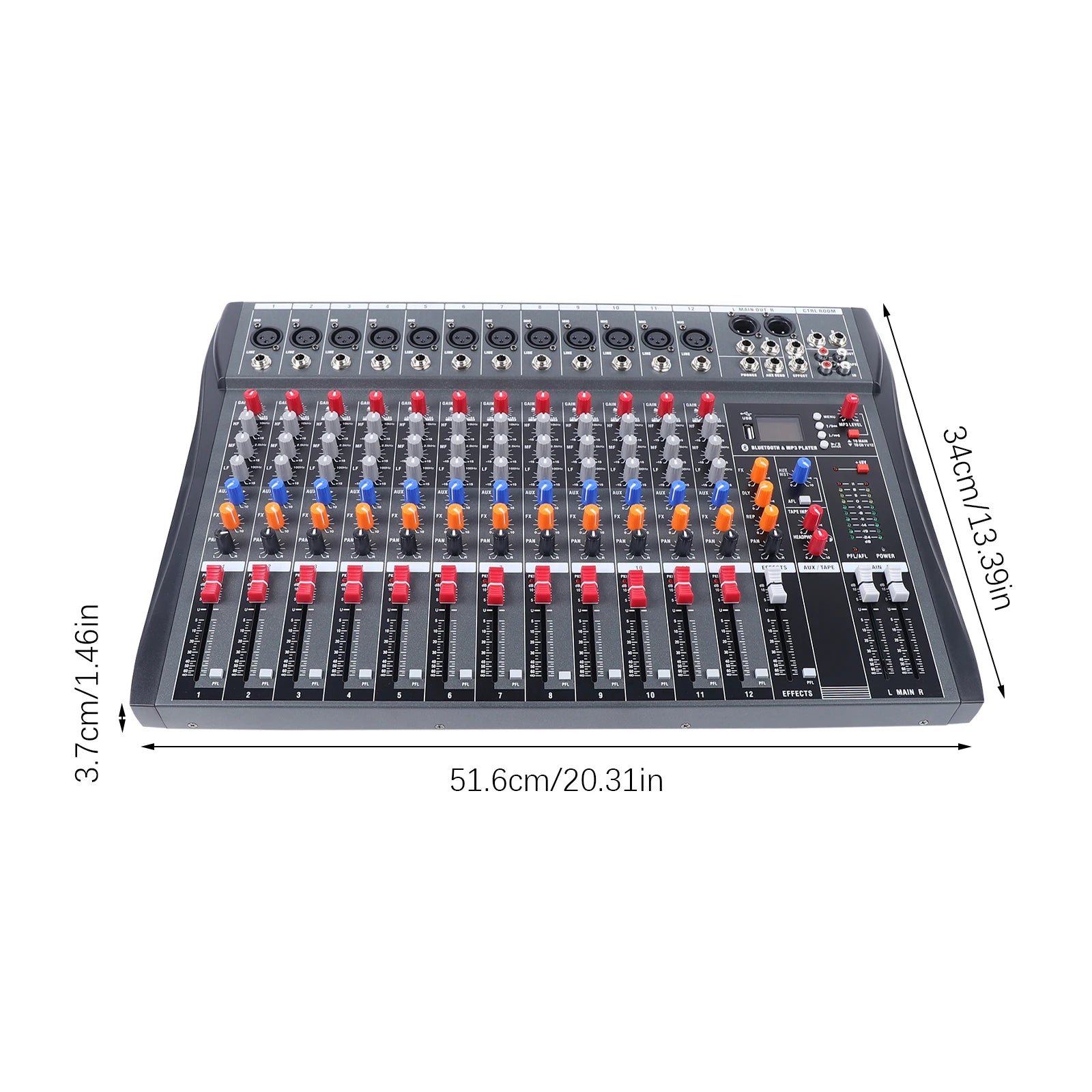

Size（approx）: 51.6cm x34cm x3.7cm

Weight: 5.9kg
